Autoclave promotion: Complete set Class B Premium 23 L with SteriTrace Pro Assistant
Autoclave promotion: Complete set Class B Premium 23 L with SteriTrace Pro Assistant
Autoclave promotion: Complete set Class B Premium 23 L with SteriTrace Pro Assistant
-23%

Autoclave promotion: Complete set Class B Premium 23 L with SteriTrace Pro Assistant

Product No.:
SPAR_23L_PREMIUM
3 Weeks 3 Weeks (abroad may vary)
Product condition :
New
Category:
Savings packages
Weight:
102.6 kg per piece
chevron-down
chevron-down
chevron-down
chevron-down
RRP 5.854,60 EUR
Only 4.499,00 EUR

plus 20% tax excl. Shipping costs

Add to wish list
Description
Free delivery


  • Free delivery in DE, AT and CH

    Free delivery from 1,200.00 € net order value

  • 24-hour emergency number

    +4917697902371 - Service Location near you

  • Purchase on account or in installments

    Purchase on account, via Paypal (Instant & Installments) or prepayment

  • Individual consultation

    We are happy to advise you via chat, phone or email

  • 2-year warranty

    We provide a 2-year warranty on our devices

  • On-site service

    We offer on-site installation, commissioning and validation of your devices

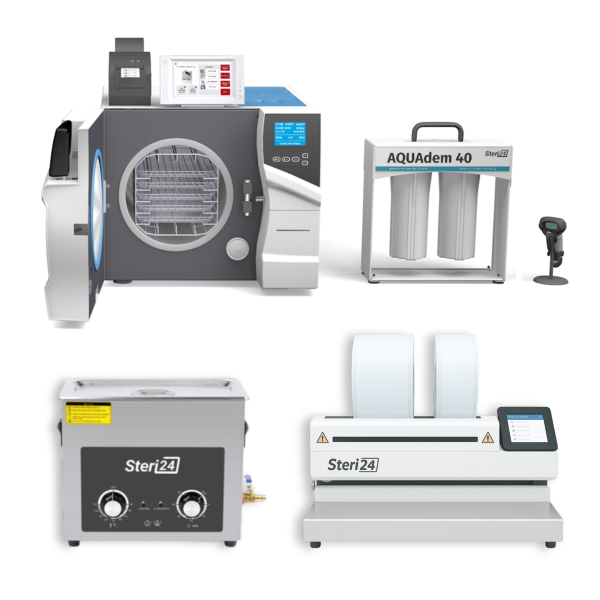

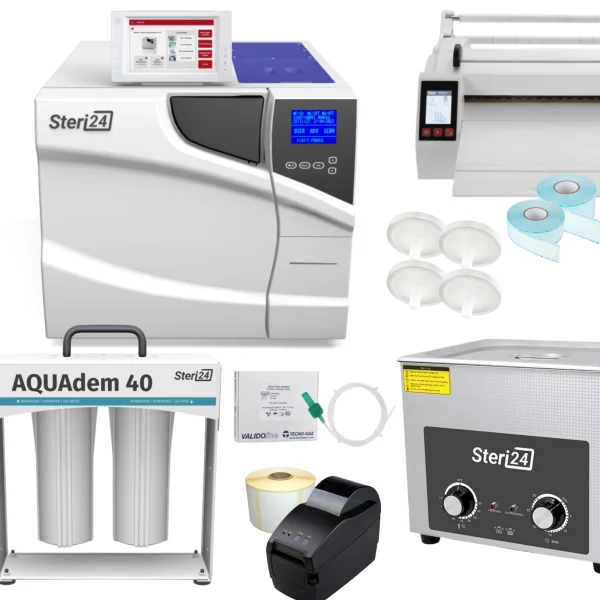

The savings package Class B Autoclave Premium 23 L with SteriTrace Pro Assistant consists of the following items:
- 1 x Class B Autoclave Premium 23L with SteriTrace Pro Assistent with fixed water connection
- 1 x Steri24 Ultrasonic Cleaner 10 L
- 1 x CertoSeal Pro Touch
- 1 x Sterilization paper roll 7,5 cm x 200 m
- 1 x Sterilization paper roll 10 cm x 200 m
- 1 x Helix test device (including 100 strips)
- 1 x Bluetooth Label Printer
- 1 x Label roll for label printers
- 1 x AQUAdem 40 – water purification system
- 4 x Bacteria filter
- 1 x Barcode reader

The total price of this set is € 5.854,60

Please note: Connection to your practice software is not carried out by our service staff during commissioning on site. This requires a separate, free online appointment with our in-house IT department. Please contact us by e-mail if you would like a connection to your practice software.

Information on commissioning on site:
To ensure that our service team can carry out the commissioning of your autoclave on site without any problems, please ensure that the following requirements are met:

  • Fixed water connection with AQUAdem 40 water treatment system:
    • Maximum distance of 3 meters to the water source and drain
    • Existing threads on site:
      • Ball outlet valve ¾'' external thread or
      • Wash basin fitting (strainer connection) with M24x1 internal thread
  • Fixed water connection with demineralized water pipe:
    • If the autoclave is to be connected directly to a demineralized water line, a 6 mm (outer diameter) polyurethane PUR hose (food-safe and hydrolysis-resistant) must be available so that the installation can take place.

We thank you for your support and will be happy to answer any questions you may have!

Documents
User Manual Class B Autoclave Pro 23L
User Manual SteriTrace Pro
Technical Data
Autoclave
Product name Steri24 Class B Autoclave Pro 23L
Model LFSS23AD
Manual Language English (Please write into the comment field if you need another language during ordering)
Chamber volume 23 litres
Number of trays 5
Tray dimensions 38 x 19 x 2 cm. (L x W x H)
Chamber dimensions Ø 25cm x 45cm
Outer dimensions 67 x 50 x 44 cm (L x W x H) Fits on a bench
Minimum depth of the table 55 cm
Documentation USB flash drive (not included; max. 16 GB)
Sterilisation time average sterilization time: 45 minutes
Sterilisation temperature free configurable from 105ºC and 134ºC
Sterilisation programs
  1. Solid 121°C (unwrapped, quick)
  2. Solid 134°C (unwrapped, quick)
  3. Porous 121°C (wrapped)
  4. Porous 134°C (wrapped)
  5. Hollow 121°C (wrapped)
  6. Hollow 134°C (wrapped)
  7. User defined
Test programs
  1. B&D test
  2. Vacuum test
  3. Helix test
Power supply type 230V, 50 Hz
Power 1950 W
Net weight 55 kg
Guarantee 2 years + yearly extension in case of a service contract
Standby energy consumption 5.8 W

 SteriTrace Pro
Display screen 7” LED display with backlight
Resolution  800 x 480 Pixel
Touch screen Capacitive
Brightness  450 cd/m²
Aspect ratio 16:9
CPU Freescale iMX.53x 800 MHz / 1,0 GHz
Core  ARM Cortex-A8
Memory  RAM: 512 MB DDR3 (optional 1 GB)
ROM: 4 GB NAND FLASH (optional  8 GB)
Memory card connections Micro SD card and USB stick
LAN Ethernet 10/100M (RJ45)
Bluetooth Bluetooth 2.1 Host und Slave
Other interfaces CertoClav barcode scanner connection
Audio External audio socket and internal speaker
Loudspeaker  1 W
max. consumption  9 W
Permissible operating temperature -10 – 65 °C
Permissible storage temperature -25 – 8 °C
Power supply 9-36 V DC
Dimensions (L x W x D) 220 × 132 × 36,5 mm
Weight  740 g
