Key facts & highlights
- Class B sterilisation per EN 13060 – certified medical device (CE, TÜV SÜD)
- For wrapped & unwrapped instruments, textiles and hollow loads
- 12 L chamber (Ø 20 × 35 cm) with 3 trays (31 × 15 cm)
- SteriTrace Pro: paperless RKI documentation & digital batch release
- LAN & WLAN integrated · cloud & practice-software connection
- Stand-alone with integrated fresh- & waste-water tank (3 / 3 L)
- Label printer included · documentation via USB & SteriTrace Assistant
- External dimensions: 64 × 44 × 36 cm · 51 kg
- Sterilisation time on average 35 minutes
- Digital batch release on screen (SteriTrace Pro)
- Dual drying (vacuum + jacket heating)
- LAN/WLAN, cloud & practice-software connection (RS232)
- Complete, legally compliant logging
- Delivery, installation & initial validation optional
- 3 stainless-steel trays incl. holder
- Handle for safe removal of trays
Connected & fully documented – SteriTrace Pro

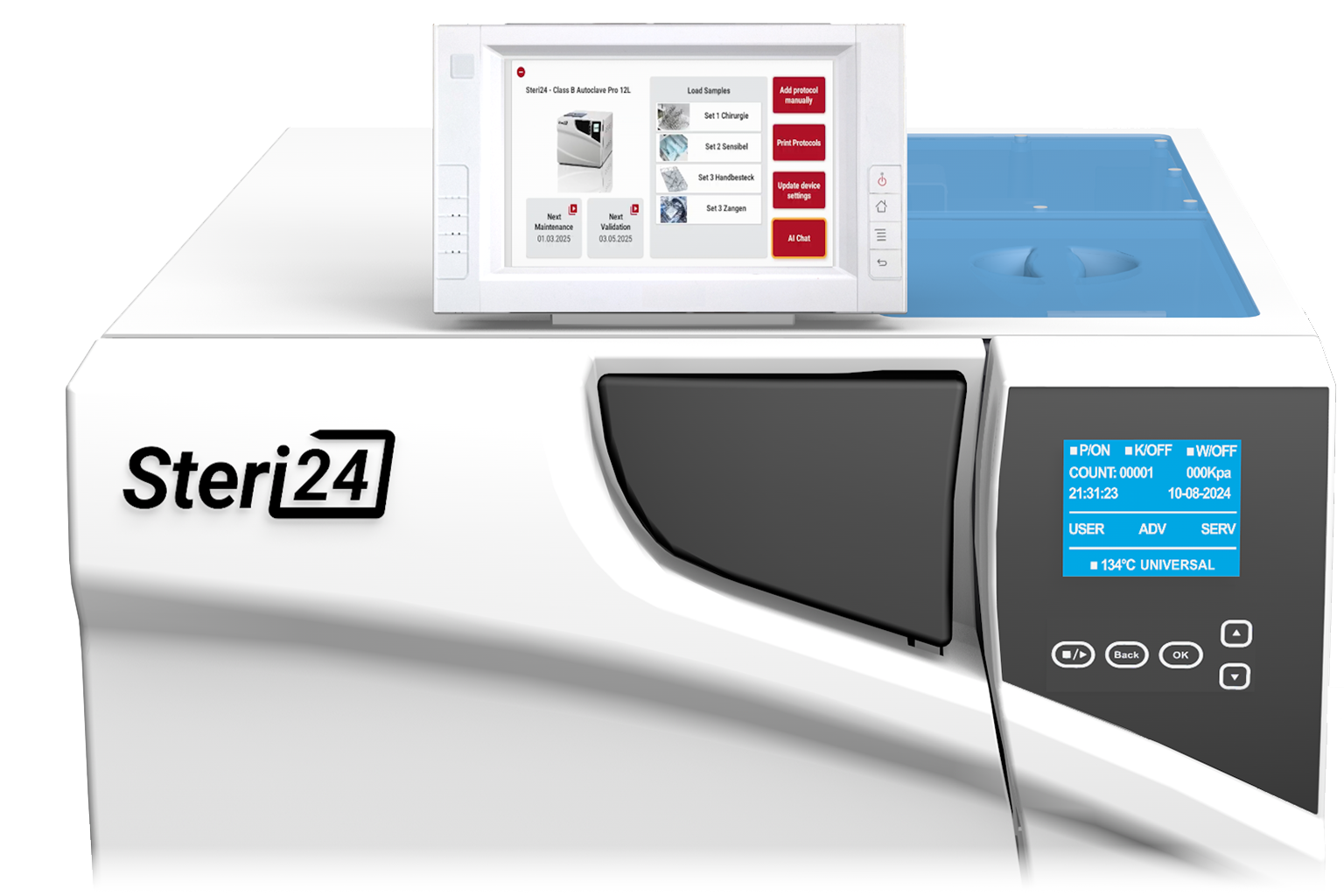

The Class B Autoclave Premium 12 L reliably sterilises packaged and unpackaged instruments, textiles and hollow bodies to EN 13060 – the conformity assessment (CE) is carried out by the notified body TÜV SÜD. Its heart is the SteriTrace Pro Assistant: paperless RKI documentation with digital batch release right on screen. Via LAN/WLAN, cloud and the connection to your practice software, the records flow automatically to where you need them – a label printer is included. The 12 L chamber with 3 trays sterilises in around 35 minutes on average.
Behind every device stands Steri24 – a brand of the family-run CertoClav Sterilizer GmbH with over 60 years of experience in sterilisation technology. You get fair prices together with a level of service usually only known from far more expensive suppliers: installation, commissioning and validation on site in Germany, Austria and Switzerland – plus up to 3 years’ warranty. This is where fully digital documentation meets reliable support.
Ideal for digitally working dental practices, dermatology and smaller clinics focused on paperless documentation.
WLAN
LAN
Cloud
Practice-software connection
Label-printer connection

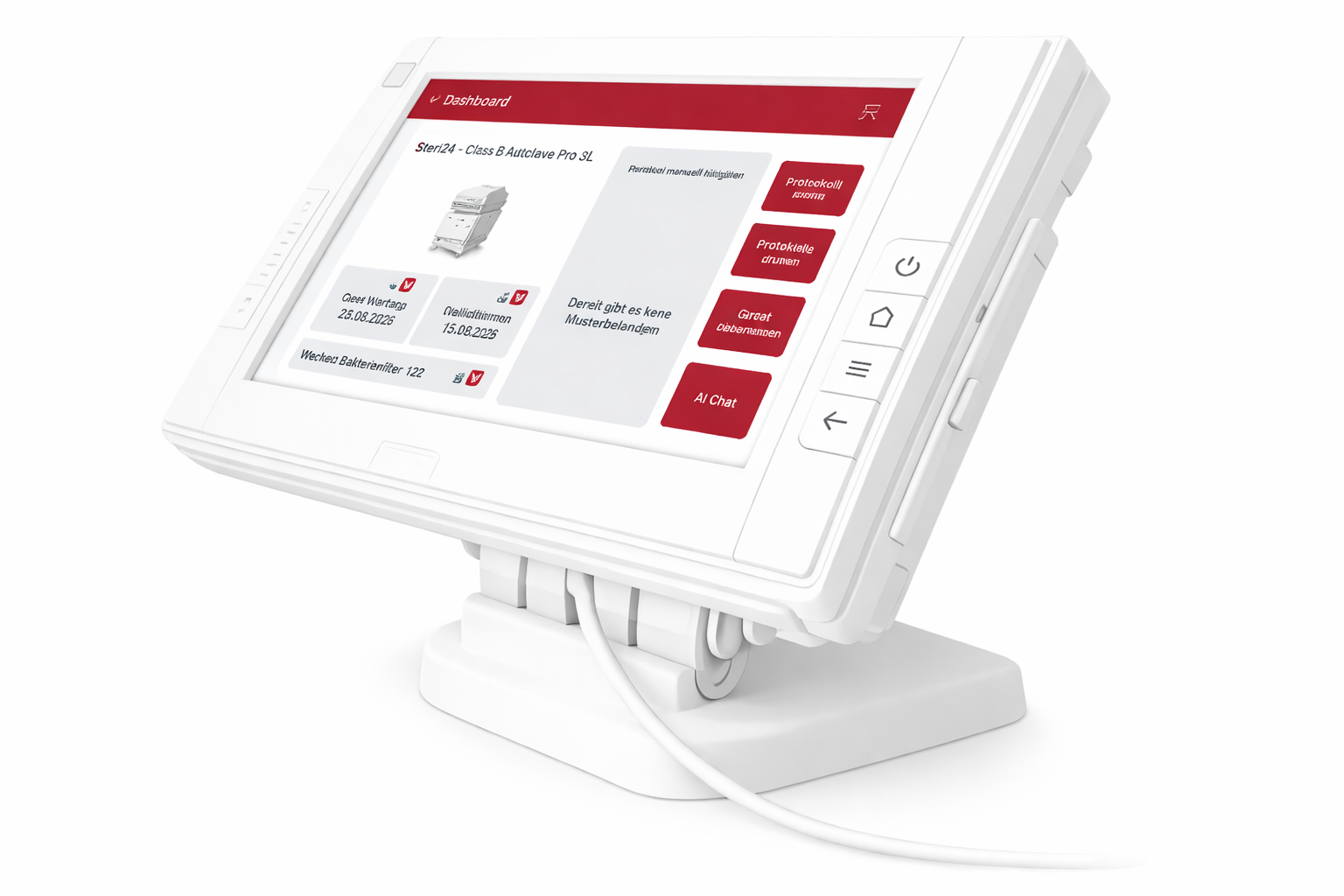

Barcode-scanner connectionThe SteriTrace Pro Assistant enables digital batch release: sterilisation records are taken over directly from the autoclave. In addition: sample loads, risk assessment of the instruments, cloud connection, user management and an integrated AI chat. With the included label printer you print labels for your sterile goods.
The connection to your practice software is set up by our in-house IT in a free online appointment (not part of the on-site commissioning). View supported software ›
What users say
Digitally & audit-proof documented
Every batch traceable, every inspection passed. With the SteriTrace Pro Assistant you release every batch digitally and document it paperlessly & in line with RKI requirements – the autoclave transfers the records automatically and hands them over via LAN/WLAN, cloud or to your practice software. You also back everything up to USB. With the included label printer you label your sterile goods directly.
- Paperless RKI batch documentation & digital release (SteriTrace Pro)
- Hand-over via LAN/WLAN, cloud & practice software – plus USB
- Initial validation & maintenance on site
- EN 13060, CE via TÜV SÜD
Frequently bought together
Technical Data
| Sterilisation class | Class B in accordance with EN 13060 (plus Class S & N) |
|---|---|
| Chamber volume | 12 litres |
| Chamber dimensions | Ø 20 × 35 cm |
| Trays | 3 × stainless steel (31 × 15 × 1.5 cm), incl. holder |
| External dimensions (L × W × H) | 64 × 44 × 36 cm |
| Net weight | 51 kg |
| Water supply | Integrated fresh- & waste-water tank (3 / 3 L) · optional fixed water connection & water treatment |
| Documentation | SteriTrace Pro (paperless RKI documentation, digital batch release) & USB · incl. label printer |
| Connectivity | LAN, WLAN, cloud · practice software (RS232), label printer, barcode scanner |
| Programmes & drying | Dual drying (vacuum + jacket heating) |
| Cycle time | on average approx. 35 minutes |
| Suitability | Wrapped & unwrapped instruments, textiles, hollow loads |
| Certification | CE approval via TÜV SÜD (notified body) |
| Warranty | 3 years with service contract (otherwise 2 years) |
| More information | See the “Technical Data” tab for more information |
Setup video
Find the right device in 5 minutes
Unsure whether 12 L is right or a smaller or larger model suits you better? In just a few minutes, our autoclave configurator shows you exactly which autoclave and which accessories best suit your practice.
Configure autoclaveFrequently asked questions about the Class B Autoclave Premium 12 L
Is the Premium 12 L RKI-compliant?
What does the SteriTrace Pro Assistant give me over the Pro model?
How long does a sterilisation cycle take?
Who is the 12 L size suitable for?
Do I need a fixed water connection?
What warranty is provided?
Do you deliver and install the device?
Important installation notes
The Premium 12 L works stand-alone with an integrated fresh- and waste-water tank and is ready to use straight away. Optionally, it can also be run fully automatically with treated water. If you wish to use the AQUAdem 40 as a water treatment system (see accessories), please note:
- A maximum distance of 3 metres to the water source and the drain.
- Threads available on site: ¾″ male-thread ball outlet valve or sink tap (strainer connection) with M24×1 female thread.
If the autoclave is connected directly to a DI-water line, a 6 mm (outer diameter) polyurethane PUR hose (food-safe and hydrolysis-resistant) must be available. The connection to your practice software is set up by our in-house IT in a free online appointment (not part of the on-site commissioning).
| Product name | Steri24 Class B Autoclave Pro 12 L |
|---|---|
| Model code | LFSS12AD |
| User manual language | English |
| Chamber volume | 12 liters |
| Number of trays | 3 |
| Tray dimensions | 31 x 15 x 1,5 cm. (L x W x H) |
| Chamber dimensions | Ø 20 cm x 35 cm |
| Product dimensions | 64 x 44 x 36cm (L x W x H) |
| Documentation | USB stick (not included; max. 16 GB) |
| Average serilisation time | 35 minutes |
| Sterilisation temperature | Free configureable between 105ºC up to 134ºC |
| Sterilisation programs |
|
| Test programs | B&D test, Vacuum test, Helix test |
| Power supply | 230V AC, 50Hz |
| Power | 1950 W |
| Net weight | 51 kg |
| Guarantee | 2 years (+ 1 year extension per year in case of a service contract) |
| Standby energy consumption | 5.8 W |
| Display screen | 7” LED display with backlight |
| Resolution | 800 x 480 Pixel |
| Touch screen | Capacitive |
| Brightness | 450 cd/m² |
| Aspect ratio | 16:9 |
| CPU | Freescale iMX.53x 800 MHz / 1,0 GHz |
| Core | ARM Cortex-A8 |
| Memory | RAM: 512 MB DDR3 (optional 1 GB) ROM: 4 GB NAND FLASH (optional 8 GB) |
| Memory card connections | Micro SD card and USB stick |
| LAN | Ethernet 10/100M (RJ45) |
| Bluetooth | Bluetooth 2.1 Host und Slave |
| Other interfaces | CertoClav barcode scanner connection |
| Audio | External audio socket and internal speaker |
| Loudspeaker | 1 W |
| max. consumption | 9 W |
| Permissible operating temperature | -10 – 65 °C |
| Permissible storage temperature | -25 – 8 °C |
| Power supply | 9-36 V DC |
| Dimensions (L x W x D) | 220 × 132 × 36,5 mm |
| Weight | 740 g |
- ✓Autoclave ready to use – with SteriTrace tablet
- ✓Label printer incl. labels
- ✓3 stainless-steel trays incl. holder
- ✓Handle for safe tray removal
- ✓USB stick, power cable & drain hoses
- ✓Manuals & certificates (DE/EN)
