Key facts & highlights
- Class B sterilisation per EN 13060 – certified medical device (CE 0123, TÜV SÜD)
- For wrapped & unwrapped instruments, textiles and hollow loads
- 23 L chamber (Ø 25 × 45 cm) with 5 trays (38 × 19 cm)
- Stand-alone with integrated fresh- & waste-water tank (4 / 4 L)
- Optional: fixed water connection & water treatment
- 7 programmes, easy operation
- Log printer & USB documentation included
- External dimensions: 68 × 50 × 43 cm · 55 kg
- Sterilisation time on average 45 minutes
- Integrated conductivity sensor
- Dual drying (vacuum + jacket heating)
- Integrated documentation via USB & thermal printer
- Complete, legally compliant logging
- Delivery, installation & initial validation optional
- 5 stainless-steel trays incl. holder
- Handle for safe removal of trays
High capacity. Uncompromisingly safe.

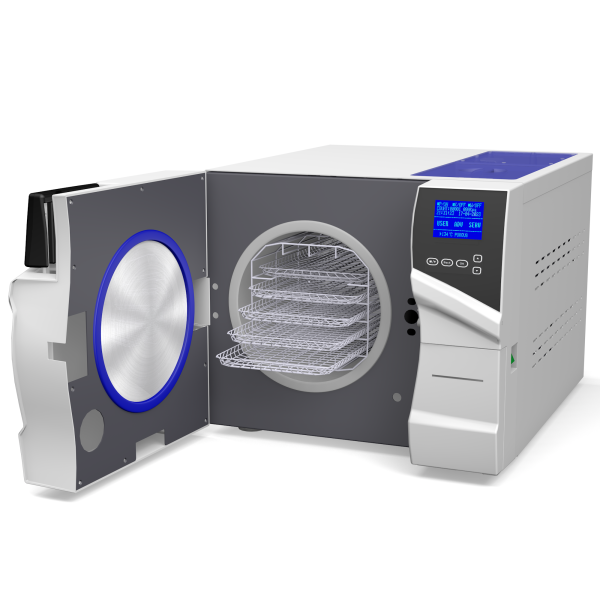

The Class B Autoclave Pro 23 L reliably sterilises wrapped and unwrapped instruments, textiles and hollow loads in accordance with EN 13060 – the conformity assessment (CE 0123) is carried out by the notified body TÜV SÜD. With a 23 L chamber and 5 trays it offers ample capacity for practices and clinics with a higher workload. 7 programmes and dual drying (vacuum + jacket heating) ensure safe, well-dried loads in an average of roughly 45 minutes.
Behind every device stands Steri24 – a brand of the family-run CertoClav Sterilizer GmbH with over 60 years of experience in sterilisation technology. You receive fair prices together with a service otherwise known only from far more expensive suppliers: installation, setup and validation on site in Germany, Austria and Switzerland – plus up to a 3-year warranty. This is where high capacity meets reliable support.
Ideal for dental practices, clinics, medical centres, surgical practices and veterinary clinics.
What users say
Audit-proof documentation
Every batch traceable, every inspection passed. With USB & thermal printer you document in line with RKI requirements – entirely without complicated technology. Print logs directly or save them to USB: simple, audit-proof and ideal for inspections.
- RKI-compliant batch documentation via USB & thermal printer
- Print logs directly or save them to USB
- Initial validation & maintenance on site
- EN 13060, CE 0123 via TÜV SÜD
Frequently bought together
Technical Data
| Sterilisation class | Class B in accordance with EN 13060 |
|---|---|
| Chamber volume | 23 litres |
| Chamber dimensions | Ø 25 × 45 cm |
| Trays | 5 × stainless steel (38 × 19 × 2 cm), incl. holder |
| External dimensions (L × W × H) | 68 × 50 × 43 cm |
| Net weight | 55 kg |
| Water supply | Integrated fresh- & waste-water tank · optional fixed water connection & water treatment |
| Programmes & drying | 7 programmes · dual drying (vacuum + jacket heating) · conductivity sensor |
| Documentation | USB & integrated thermal printer, legally compliant logging |
| Cycle time | on average approx. 45 minutes |
| Suitability | Wrapped & unwrapped instruments, textiles, hollow loads |
| Certification | CE 0123 via TÜV SÜD (notified body) |
| Warranty | 3 years with service contract (otherwise 2 years) |
| More information | See the “Technical Data” tab for more information |
Setup video
Find the right device in 5 minutes
Unsure whether 23 L is right or a smaller or larger model suits you better? In just a few minutes, our autoclave configurator shows you exactly which autoclave and which accessories best suit your practice.
Configure autoclaveFrequently asked questions about the Class B Autoclave Pro 23 L
Is the Pro 23 L RKI-compliant?
How long does a sterilisation cycle take?
Who is the 23 L size suitable for?
Do I need a fixed water connection?
What warranty is provided?
Do you deliver and install the device?
Important installation notes
The Pro 23 L works stand-alone with an integrated fresh- and waste-water tank and is ready to use straight away. Optionally, it can also be run fully automatically with treated water. If you wish to use the AQUAdem 40 as a water treatment system (see accessories), please note:
- A maximum distance of 3 metres to the water source and the drain.
- Threads available on site: ¾″ male-thread ball outlet valve or sink tap (strainer connection) with M24×1 female thread.
If the autoclave is connected directly to a DI-water line, a 6 mm (outer diameter) polyurethane PUR hose (food-safe and hydrolysis-resistant) must be available.
| Product name | Steri24 Class B Autoclave Pro 23L |
|---|---|
| Model | LFSS23AD |
| Manual Language | English (Please write into the comment field if you need another language during ordering) |
| Chamber volume | 23 litres |
| Number of trays | 5 |
| Tray dimensions | 38 x 19 x 2 cm. (L x W x H) |
| Chamber dimensions | Ø 25cm x 45cm |
| Outer dimensions | 67 x 50 x 44 cm (L x W x H) Fits on a bench |
| Minimum depth of the table | 58 cm |
| Documentation | USB flash drive (not included; max. 16 GB) and thermal printer |
| Sterilisation time | average sterilization time: 45 minutes |
| Sterilisation temperature | free configurable from 105ºC and 134ºC |
| Sterilisation programs |
|
| Test programs |
|
| Power supply type | 230V, 50 Hz |
| Power | 1950 W |
| Net weight | 55 kg |
| Guarantee | 2 years + yearly extension in case of a service contract |
| Standby energy consumption | 5.8 W |
- ✓Autoclave ready to use
- ✓5 stainless-steel trays incl. holder
- ✓Handle for safe tray removal
- ✓USB stick
- ✓Power cable & drain hoses
- ✓Manuals & certificates (DE/EN)
